Multi drum turner
- flexible drum handling!

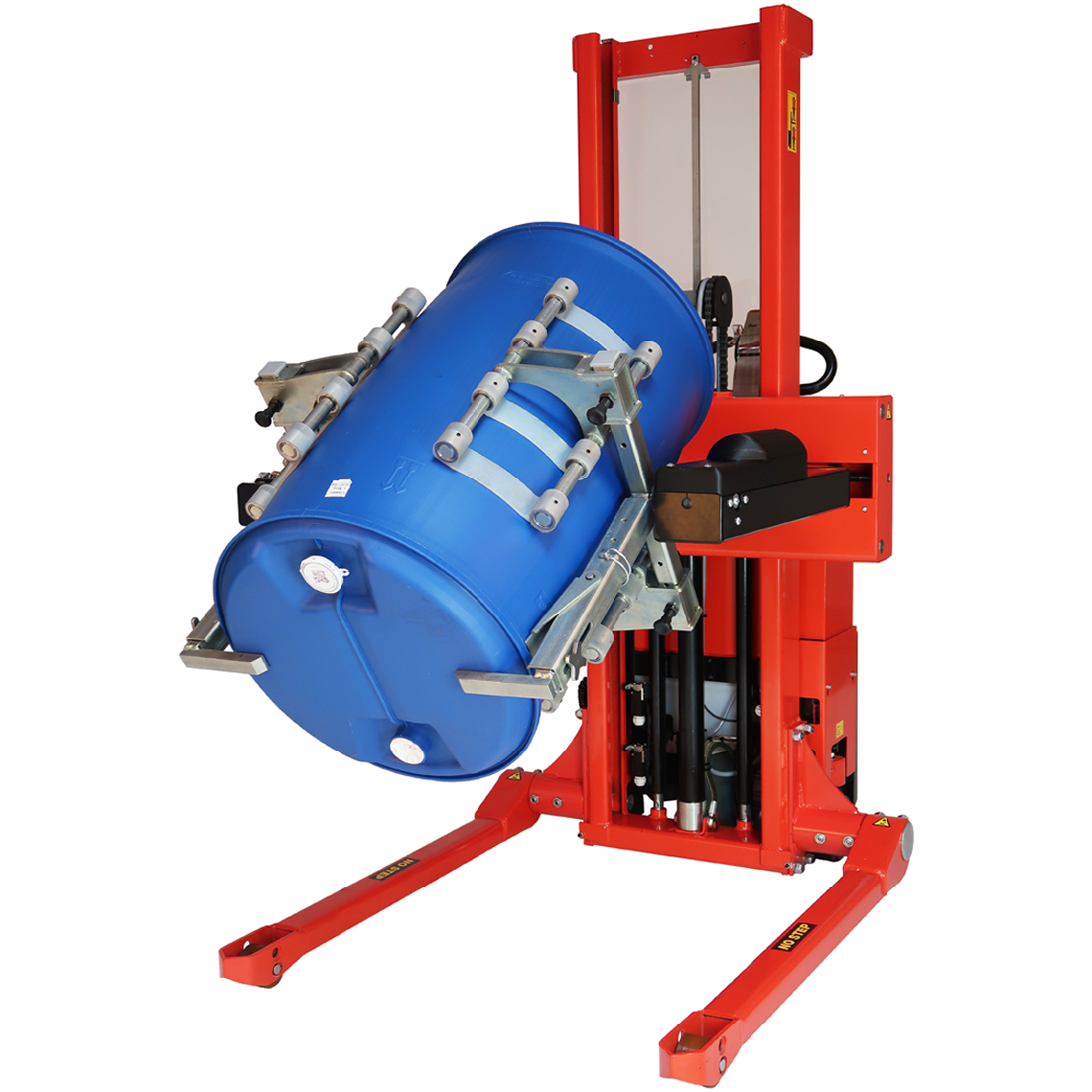

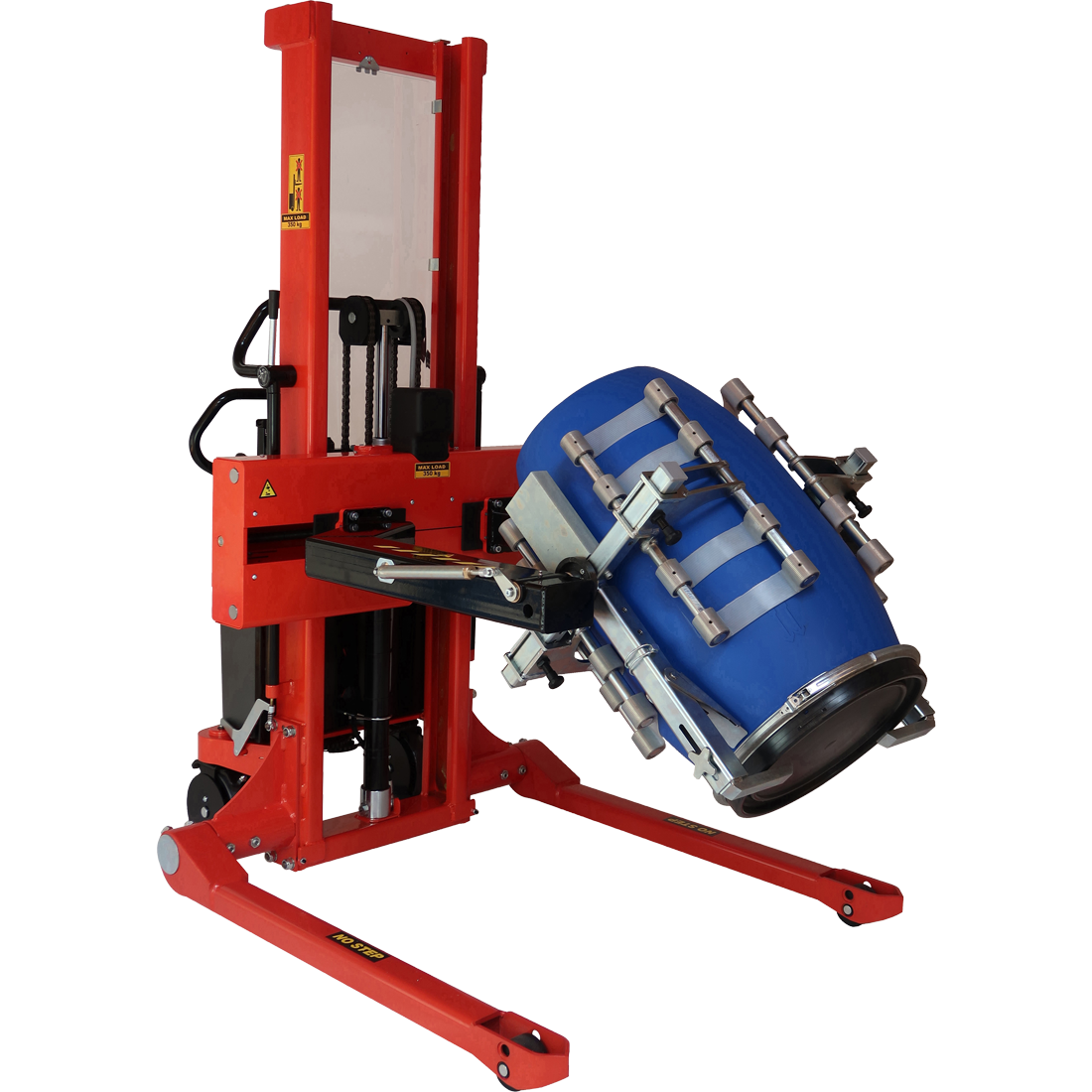

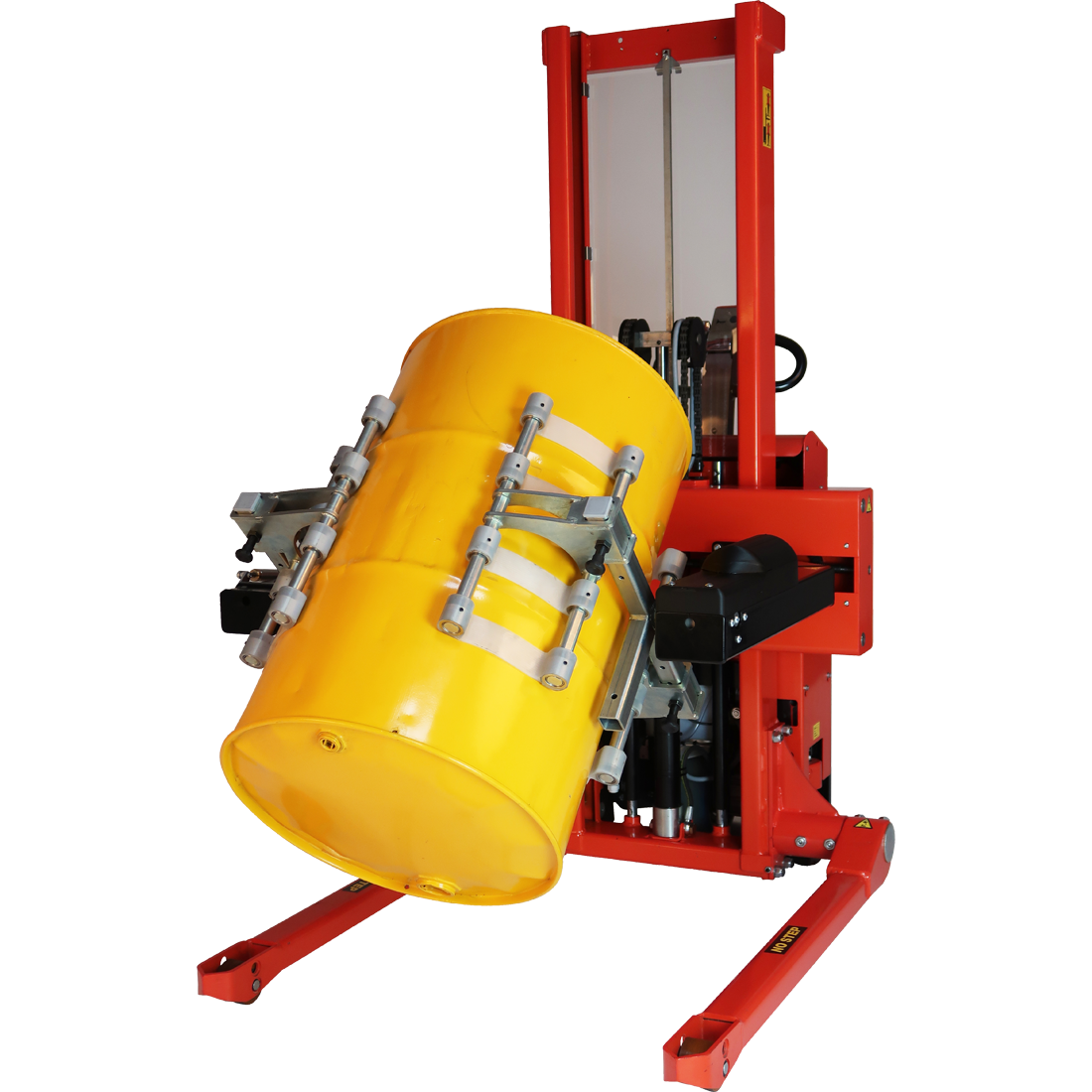

High flexibility and efficiency - the Multi drum turner can handle many kinds of drums in the horizontal or vertical position, and of different materials and dimensions: Steel, plastic, small, low, high, square, round drums – no problem!

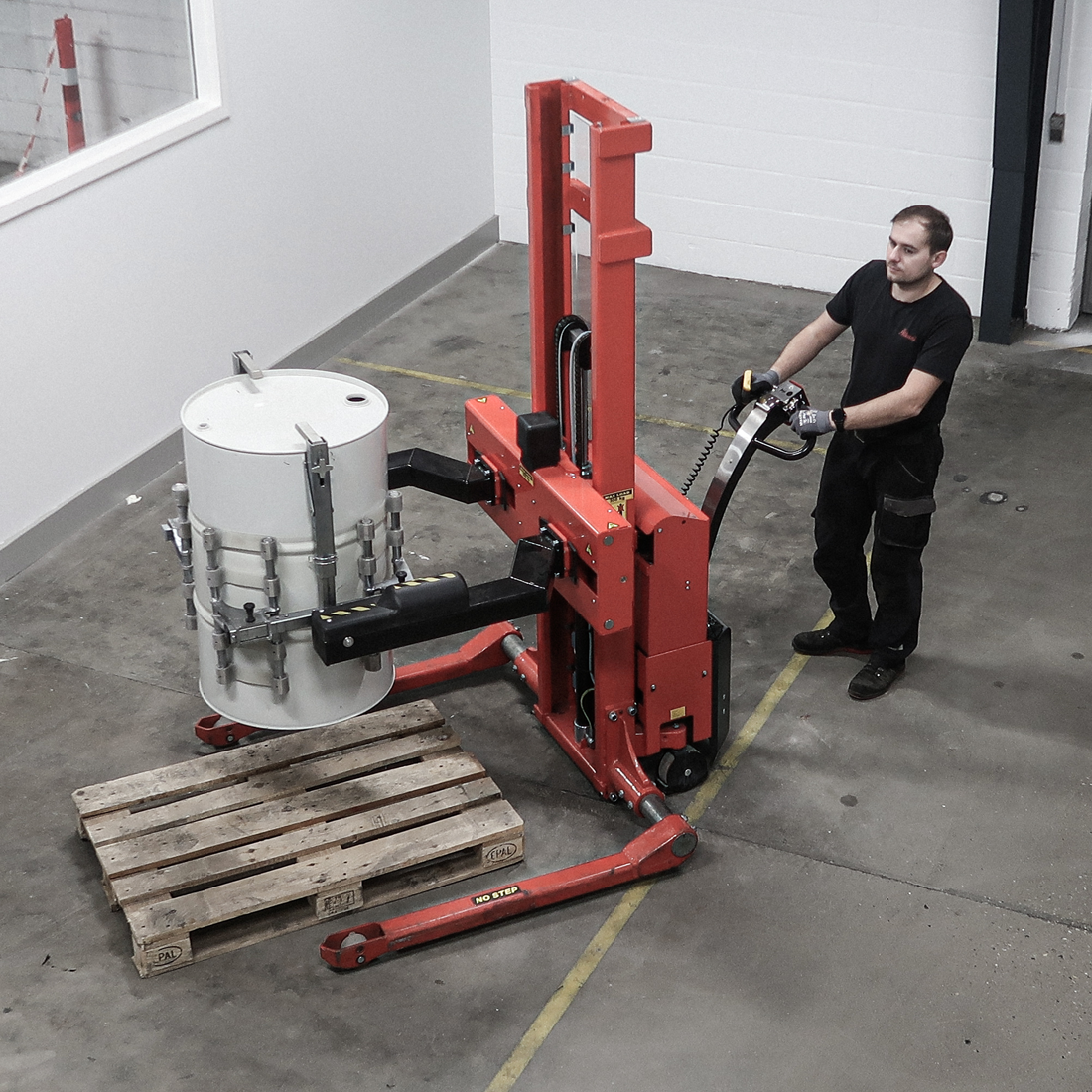

Rotation and opening/closing of the gripping arms, and the lifting and lowering function, are electric. The Multi drum turner can be fitted on both the fully powered Logiflex and the electric Logiflex. Both models are available with straddle legs, if the drum e.g. is placed on a closed pallet.

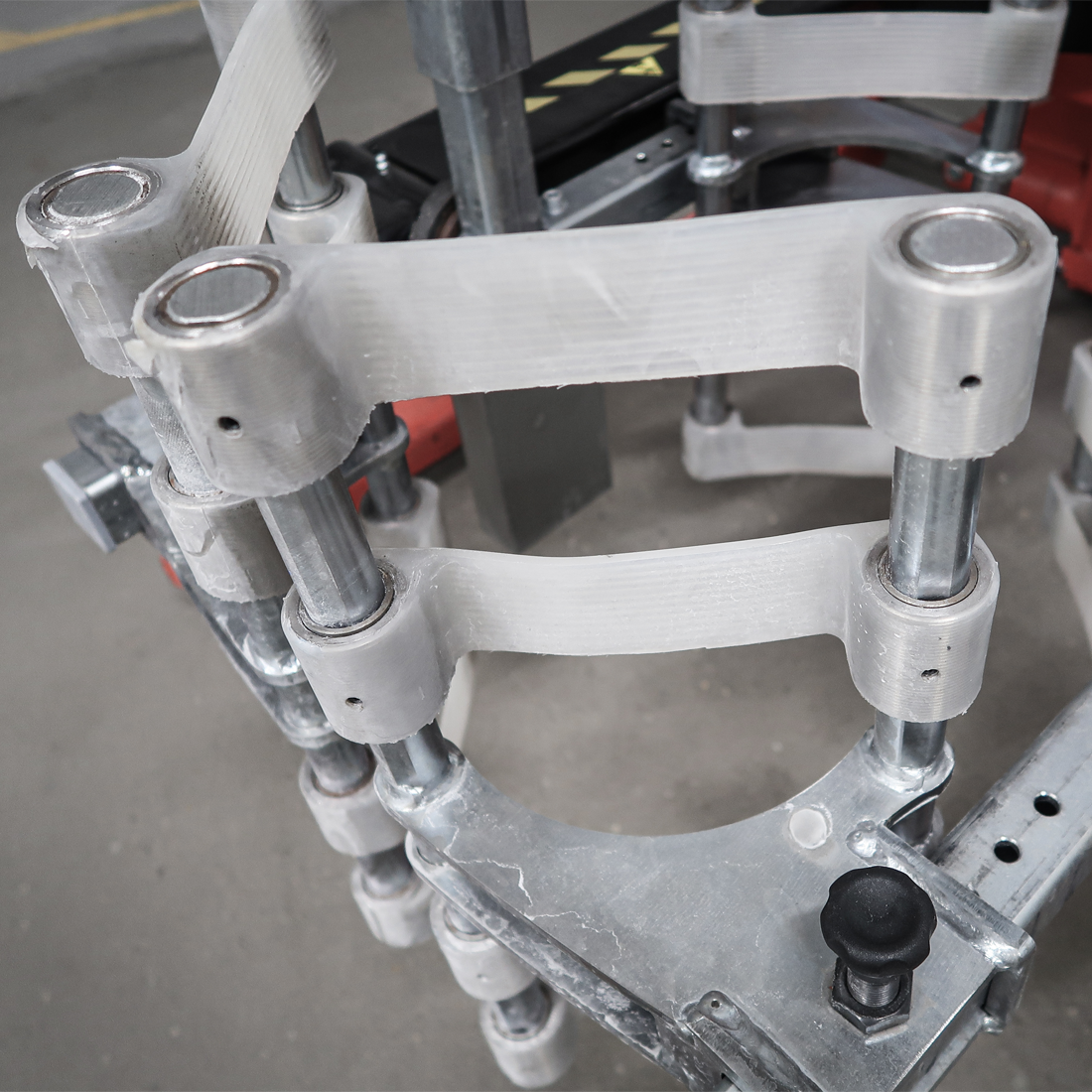

The Multi drum turner has a set of flexible, specially designed grippers, which can be adjusted according to drum type/diameter. The grippers can, without tools, easily be adjusted to fit large and small drums.
Focus on safety – the drums are fixed by flexible grippers, locking plate and top lock.
EFFICIENCY AND FLEXIBILITY
- Handles steel, plastic, small, low, high, square, round drums from Ø11,75 to Ø23,6 inch

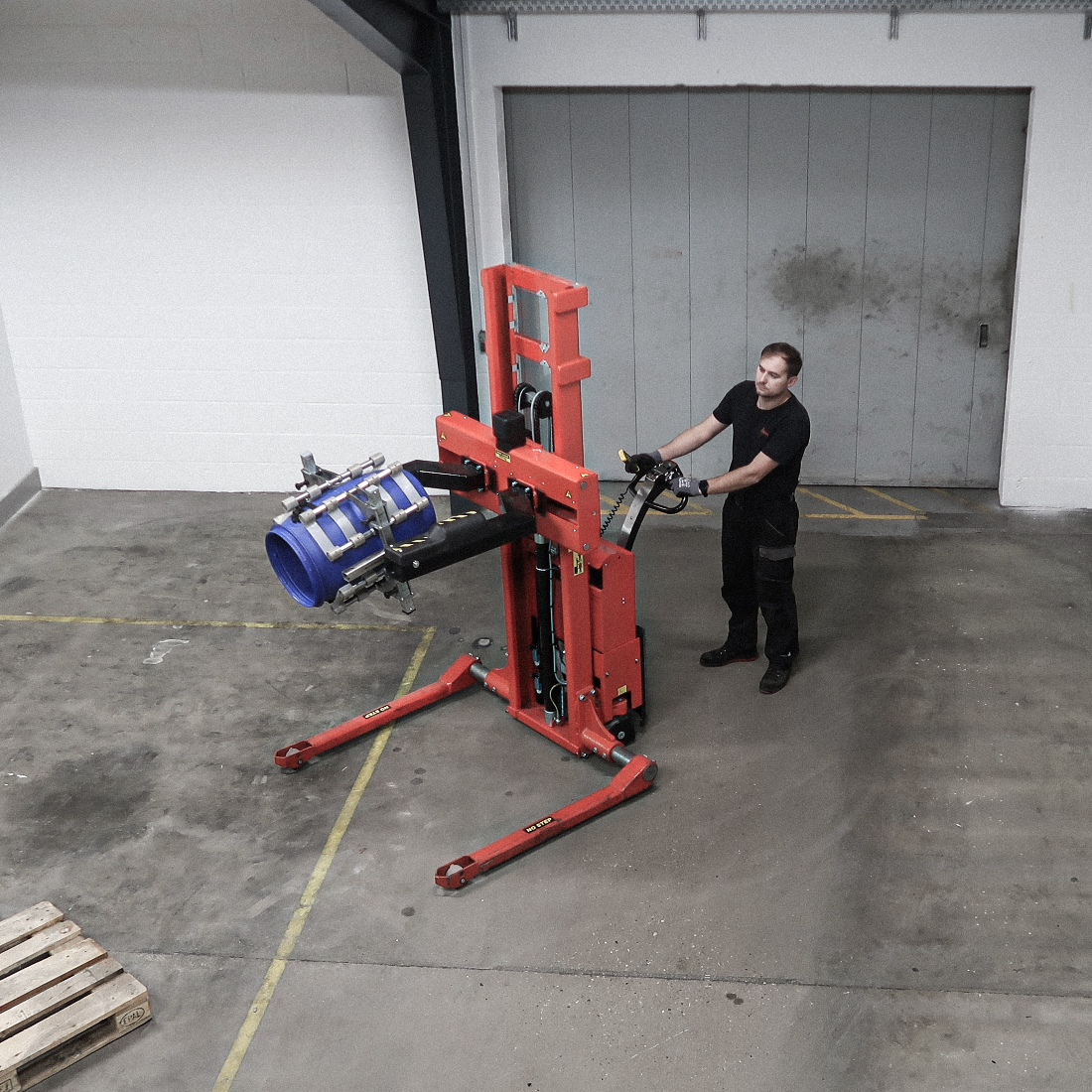

- Horizontal or vertical position
- Remote control for rotation, lifting/lowering and clamping
- Tailor-made solutions are possible
- Strong construction
- Low maintenance costs
- Long operating life
- Easy and quick handling of drums
- Ergonomically correct handle
- Drums are fixed by flexible grippers, locking plate and top lock

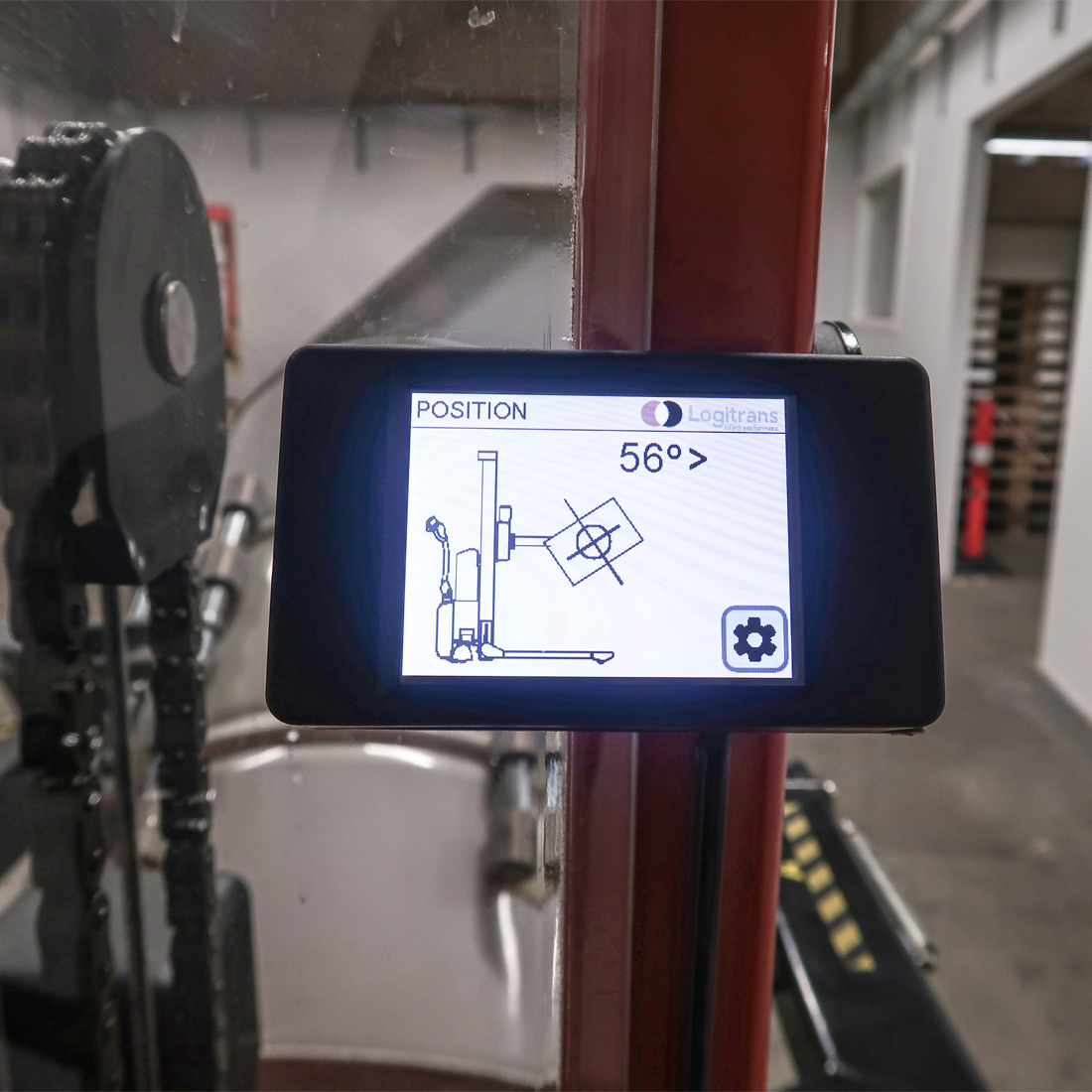

- Large display – easy to use, easy visual presentation, touch screen
- Possible to program e.g. several stops, turning angle, speed, rotation
- Log function, e.g. operational time, current consumption, number of operations, overload registration, battery status
- Shows error messages and actual position/turning angle
- Supervisor function can be activated to lock the settings
- On the Multi drum turner, you will also be able to program stop positions of the clamping arms in order to adjust them to specific drum diameters and/or to prevent damaging clamping of the drum.
- Capacity 750 lbs
- Rotation 360°
- Rotation and opening/closing of the gripping arms is electric
- Lifting and lowering function is electric
- Is available with electric propulsion (SELFMDT) and manual propulsion (ELFMDT)
- Both models are available with straddle legs (SELFSMDT/ELFSMDT)
